500 "Open-Hearted"

All models in the Rapid 500 series can be used either as a central granulator or as in-line granulator for large products or where higher capacity is required. Typical applications are granulation of large quantities of sprues, large molded items, pipes & profiles, sheets, etc.

Open-Hearted design – for quick and easy access to the cutting chamber of the granulator for cleaning/maintenance – maximizes your production time.
Lower energy consumption with double-scissors cutting action.
Pre-adjustable knives for optimal knife sharpness.
High quality regrind.
Heavy duty beam rotor – 3- or 5-blade.
Various infeed options for all types of applications.
Reversible screen – for longer life.
Constant Cutting Circle (CCC).

Product sheet Rapid catalog book a demo / contact

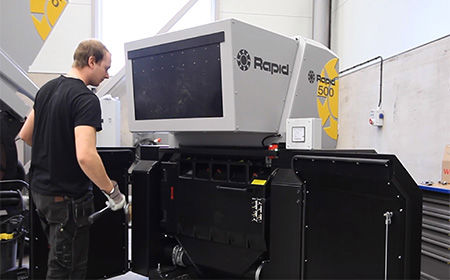

Open-Hearted design

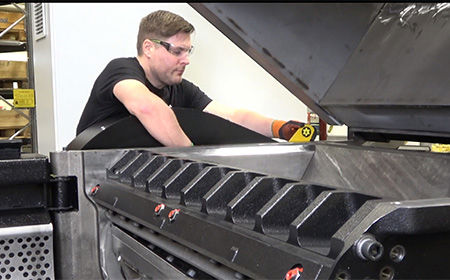

Rapid's Open-Hearted design provides quick, easy and complete access to the granulator’s heart - the cutting area of the granulator. This facilitates quick and easy cleaning when changing colors or materials. Maximum visibility of the cutting area removes doubts if it is clean or not with no hidden corners where materials can be "missed". Replacement of knives are also easy due to the easy access.

Custom configuration

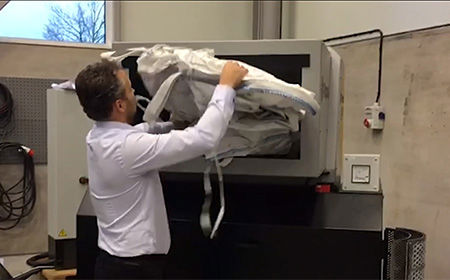

With a variety of infeed options and cutter house configurations, we can adapt each granulator to your specific needs.

Lower energy consumption with "double-scissor knives"

With a genuine double-scissor knife configuration, where both the fixed and rotating knives are angled, the force needed to cut the plastic is significantly reduced. This in combination with a large torque means that a smaller motor can be used thereby saving energy costs.

Metric

Imperial

Specifications

Metric

Imperial

Model	500-60	500-90	500-120
Rotor
Rotor diameter, (mm)	450	450	450
Rotor type	3 balde	3 blade	3 blade
Rotating knives	6 (3 x 2)	6 (3 x 2)	6 (3 x 2)
Cutterhouse
Super-Tagential, dim. (mm)	620 x 580	920 x 580	1220 x 580
Tagential, dim. (mm)	620 x 580	920 x 580	1220 x 580
Pre-Cut, dim. (mm), option	600 x 460	900 x 460	1200 x 460
Fixed knives	2 x 2	2 x 2	2 x 2
Transmission
Motor, standard (kW)	22	30	37
Motor, alternatives, (kW)	30, 37, 45, 55	22, 37, 45, 55	22, 30, 45, 55
Screen
Screen hole diam., (mm)	8	8	8
Hopper
Hopper infeed opening, (mm)	600 x 450	900 x 450	1200 x 450

Model	500-60	500-90	500-120
Rotor
Rotor diameter, (inch)	18"	18"	18"
Rotor type	3 blade	3 blade	3 blade
Rotating knives	6 (3 x 2)	6 (3 x 2)	6 (3 x 2)
Cutterhouse
Super-Tagential, dim. (inch)	24 x 23"	36 x 23"	48 x 23"
Tagential, dim. (inch)	24 x 23"	36 x 23"	48 x 23"
Pre-Cut, dim. (inch), option	24 x 18"	36 x 18"	48 x 18"
Fixed knives	2 x 2	2 x 2	2 x 2
Transmission
Motor, standard (HP)	40	40	50
Motor, alternatives, (HP)	50, 75, 100	50, 75, 100	40, 75, 100
Screen
Screen hole diam., (inch)	5/16"	5/16"	5/16"
Hopper
Hopper infeed opening, (inch)	24 x 18"	36 x 18"	48 x 18"
